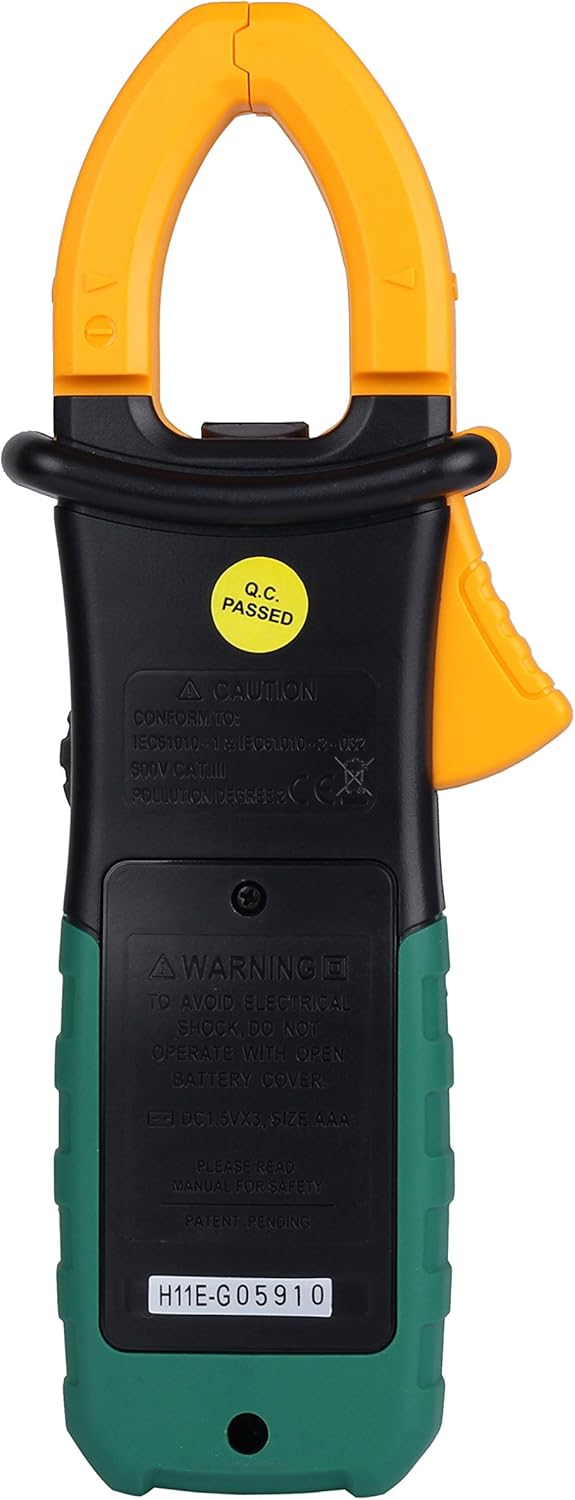

MS2108A Auto Range Digital Clamp Meter 400 AC DC Current Hz Tester
Product details
| Management number | 221590787 | Release Date | 2026/05/03 | List Price | $23.20 | Model Number | 221590787 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Features: Perform measurements of AC/DC voltage and current, resistance, frequency, duty, capacitance, as well as continuity and diode test. Display: 4000 counts with analog bar LCD display. Maximum voltage between terminals and earth ground: DC 1000V or AC 750V. Over range protection for all ranges. Reading hold function. Square value measuring function. (at AC A and AC V range) Maximum & minimum value measuring function. Converte rate: 3 times/sec. Bar graph: 30 times/sec. Auto power off. Continuity test. Diode test. MAX. diameter for conductor: Ф26mm. Secondary injection molding case. Conform to the IEC1010-1 & IEC1010-1-032 standards. Specifications: Model: MS2108A Double Insulation Protection class CAT III 600V and pollution degree 2 Display: 4000 counts DC Voltage Accuracy 400mV / 4V / 40V / 400V / 1000V ± 0.8% AC Voltage Accuracy 4V / 40V / 400V / 750V ± 1.0% DC Current Accuracy 40A / 400A ± 2% AC Current Accuracy 40A / 400A ± 2% Resistance Accuracy 400Ω / 4kΩ / 40kΩ / 400kΩ ± 0.8%, 4MΩ / 40MΩ ± 1.2% Capacitance 40nF / 400nF / 4μF / 40μF / 400μF / 4000μF ± 4% Frequency Accuracy 10Hz / 100Hz / 1KHz / 10kHz / 100kHz / 1MHz / 10MHz ± 1%, 10 ~10KHz ± 2% Duty Cycle: 0.1% ~ 99.9% ± 3% Operating Temperature: 0℃ ~ 40℃ (32°F ~ 104°F) Storage Temperture: -10℃ ~ 50℃ (10°F ~ 122°F) MAX. Diameter for Jaw: Ф26mm Dimension: 208mm x 78mm x 35mm Power: 1.5V (AAA) x 3 (not included) Weight: 340gPackage Includes: 1 x MS2108A Clamp Meter 1 x Test Leads1 x Canvas Bag
- Measures AC/DC amps, AC/DC voltage, resistance, frequency, duty, capacitance, as well as continuity and diode test
- Display: 4000 counts LCD display with analog bar
- Maximum voltage between terminals and earth ground: DC 1000V or AC 750V
- Over range protection for all ranges
- Reading hold function
| UPC | 796299090517 705554037099 |
|---|---|
| Color | Green |
| Model | MS2108A |
| Brand Name | AIMO |
| Style Name | Clamp Meter |
| Unit Count | 1.0 Count |
| Item Weight | 15.2 ounces |
| Part Number | MS2108A |
| Manufacturer | AIMO |
| Power Source | 1.5v Aaa Battery |
| Item Dimensions | 9.3 x 4.4 x 2.4 inches |
| Upper Temperature Rating | 40 Degrees Celsius |
